OneSite Patch - SaaS changes the way you create and manage Locations compared with OneSite Patch - Self-hosted. OneSite Patch - Self-hosted automatically creates a Location when the Adaptiva Client directly communicates with the Adaptiva Server, across the company network. If the Adaptiva Client cannot communicate directly, it sends messages to Adaptiva Cloud Services to relay them to the Adaptiva Server, and then the Adaptiva Client is placed in an Internet Location based on its public IP address.
In the OneSite Patch - SaaS environment, the Adaptiva Client communicates directly with the OneSite Patch - SaaS tenant using HTTPS and automatically creates an Internet Location based on the Public IP Address of the client. The system does not display Internet Locations in Assets > Locations. It always configures Internet Locations as Wi-Fi and uses unicast to communicate with all devices on the subnet. As a result, you cannot define Business Units and Groups using Locations. Additionally, you cannot group subnets together to reduce the number of downloads to a given Location.
Note
Internet Locations are not available on the Locations page.
To group subnets into a single Location and optimize WAN downloads and better control LAN content sharing, or to enable the creation of Business Units or Groups based on a Location, complete the following steps:
-
Navigate to Assets > Locations in the Adaptiva OneSite Admin Portal.
-
Select More, and then select Auto Location Creation.
-

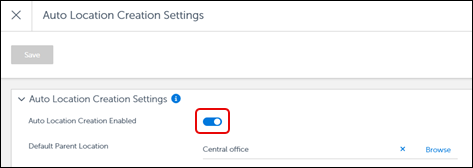

Toggle Auto Location Creation Enabled to on, and then select Save
-
Select More, and then select On-Premises Client Detection.
-

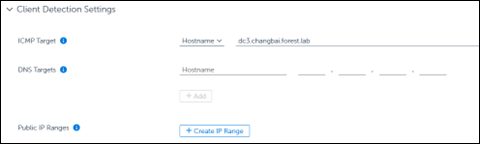

Enter the details for one or more of the following options under Client Detection Settings:
Client Detection Settings
- ICMP Target
-
Select Hostname or IP Address, and then enter the information for a device on the company network that the Adaptiva Client can ping using ICMP.
- DNS Targets
-
Enter the fully qualified domain FQDN for the hostname and the IP address associated with it. If the Adaptiva Client returns the given IP address when running a DNS lookup for the hostname, it is considered on-premises. Multiple pairs may be added.
- Public IP Ranges
-
Select + Create IP Range, and then enter a Starting and Ending IP address. If the detected IP address associated with the Adaptiva Client is within this range, it is considered on-premises.
-
After completing the preceding steps, you must add an IP range to the Central Office Location. If the system automatically creates a Location based on the desired IP Range that you wish to define as the Central Office Location, you can merge it into the Central Office Location. Adaptiva Clients that match your defined options will no longer be considered internet clients.
-
The system adds clients that match the defined options to auto-created locations based on their internal IP addresses. You can then manage these locations as needed. See Network Topology Management
Properly planning your network topology is essential for a successful OneSite Patch deployment. Consider the following key points:
Planning Your Network Topography
- Define locations by IP ranges
-
A location consists of one or more IP ranges that identify machines connected over a LAN.
- Enable local content discovery
-
Clients in the same location discover and download content from peers in that location (Local Discovery).
- Use remote discovery when needed
-
If content is not available locally, clients query the parent location and download content from there (Remote Discovery).
- Support CDN fallback
-
You can configure a location to download content directly from the internet-based CDN, if not found within the Location.
- Follow the location hierarchy
-
Locations continue querying up the hierarchy—up to the Central Location—until they find and download the required content.
- Minimize WAN traffic
-
The system distributes each piece of content from a parent to a child location only once, reducing WAN usage.
- Use the right transport protocols
-
Between locations: OneSite uses Background Adaptive Transport, which protects bandwidth using Predictive Bandwidth Harvesting, NetBoost, and Flow Equalizer technologies.
Within locations: OneSite uses Foreground Adaptive Transport, which accelerates content delivery using the Memory Pipeline Architecture.
- Separate locations by WAN links
-
Define separate locations for IP ranges separated by a WAN link. Misconfigured locations may cause the following conditions:
-
Foreground protocol to run over WAN, saturating the link.
-
Background protocol to run over LAN, slowing content distribution.
-
- Manage topology with Excel
-
Use the provided workflow to manage your network topology in a Microsoft Excel spreadsheet and import it into OneSite.
Locate and manage the list of Locations by navigating to Assets > Locations in the Web Portal.
On the Locations page, administrators can create and view the Location hierarchy structure of the computers in their organization.

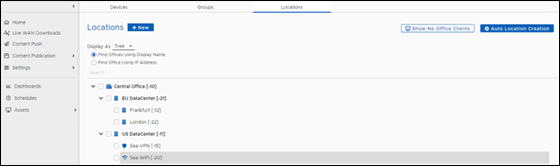

Tree View

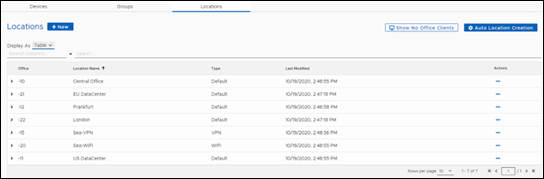

Table view
Administrators can do the following tasks on the Locations page:
-
View the hierarchical representation or table view of all locations in the system
-
Create a new child location under an existing location
-
Merge one location with another
-
Delete an existing location
-
View a location
-
Edit a location
-
Move a location from one place in the hierarchy to another
-
Set the location type to Default, VPN, Wi-Fi, and other settings
Search using the Search column. The Search column defaults to Location Name. The Search column can be changed by selecting another option.
Note
Search by Display Name or IP Address is only available when the Display As setting is Tree.
When an Adaptiva Client registers with the server for the first time, the server checks for an existing location with an IP range that matches the client. If it does not find an existing location, the server automatically creates a location using the IP address associated with the client and subnet mask. The Auto Location Creation feature on the Locations page controls this behavior.
Auto Location Creation is disabled (by default). Select More to change these settings.
Turn Auto Location Creation ON or OFF on the Auto Location Creation Settings page. Use this option when manually reorganizing subnets into different locations and want to prevent the system from auto-creating locations when a client on that subnet contacts the server.
Allowed Auto Location IP Ranges
When you enable Auto Location Creation, you can specify which IP ranges are allowed to create an auto location. Select the Restrict Auto Location Creation To The Following IP Ranges toggle to enable it. Then, select +Add Range to enter the subnet ranges.
-
Navigate to Assets > Locations, and then select the desired Location to view devices that have checked into that Location.
-

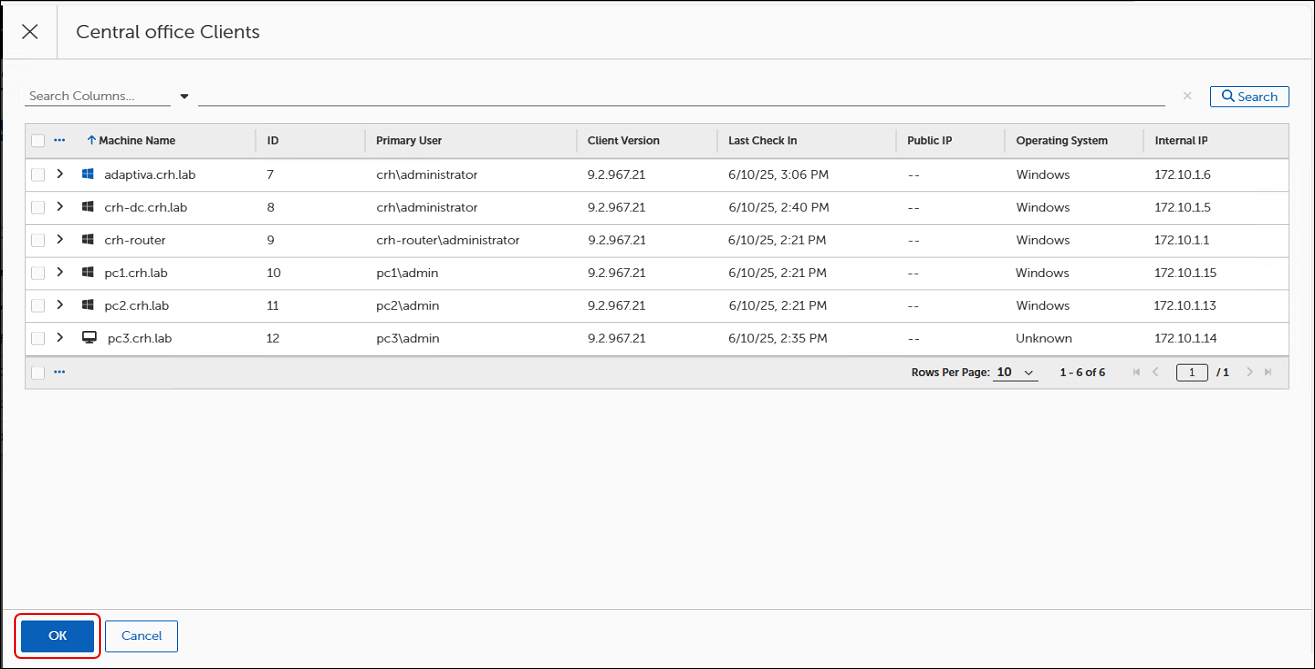

View a list of the machine names associated with the selected Location on the Device viewer page, and then select OK.
-
Select Show NO Location clients on the Locations page to see a list of No Location clients.
Note
The system does not display a visible Location for internet clients. Instead, it places them in a hidden Location called InternetLocation. Navigate to Assets > Devices, and then search for devices with a Public IP value to view those clients.
The Adaptiva Server creates a Central Location, which consists of the subnet belonging to the IP address of the Adaptiva Server. The system creates all other Locations as children of either the Central Location or other Locations. Complete the following steps to create a new location:
-
Select +New to create a new Location.
-
Once you have made the necessary changes on the New Location page, select Save.
-

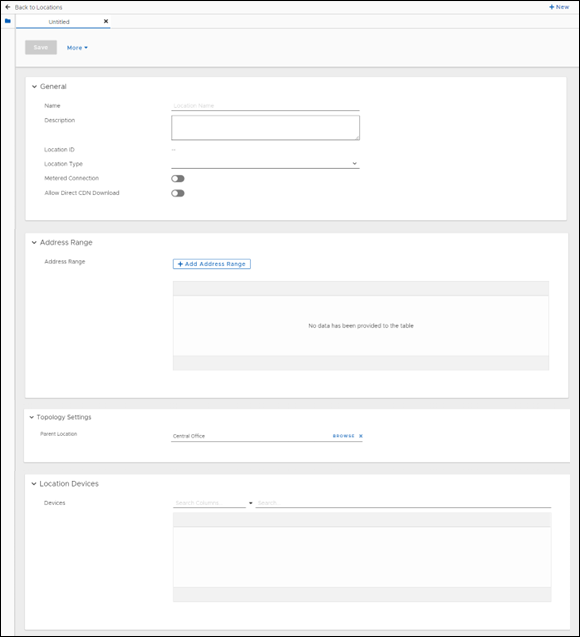

Complete the following entries:
-
Name: Specifies a name for the Location
-
Description: (Optional) Adds a description for the Location.
-
Location ID: Assigns the Location dynamically by the Adaptiva Server.
Note
This ID appears with a value of -- when creating a new Location. However, the Adaptiva Server allocates a unique ID to the location when saving and processing the user action.
-
Location Type: Specifies the type of Location that affects the behavior of how the Adaptiva Client communicates within the Location. Set the following options for this setting:
-
Default: Defines a standard wired Local Area Network.
-
VPN: Defines a Location and IP range or ranges allocated for clients connecting with a VPN. Clients within a VPN Location do not attempt to share content.
-
WiFi: Defines a Location and IP range or ranges allocated to clients connected over Wi-Fi. Clients within a Wi-Fi Location can share content. However, they use unicast communications rather than sending broadcasts.
Note
When a physical location includes both a wired and a wireless subnet, create a separate location for each. Set the wireless location to WiFi and assign it as a child of the wired location. This setup ensures the wireless location retrieves content from its parent.
-
Metered Connection: Defines a Location and subnet range or ranges as metered. This setting enables administrators to establish policies that restrict WAN downloads from clients on metered connections. Select the location of this policy setting within the System Configuration Perspective in the policy set (Contentsystem / No wan download on metered connection).
-
Allow Direct CDN Download: Allows a location to exit the hierarchy and go directly to the internet to download content. This may come from the CDN or from another client on the internet. Clients in this location cannot receive content from a parent location or the Central Location unless the content is unavailable on the Internet or Adaptiva CDN.
-
-
Address Range: A table of IP address ranges, denoted by Starting IP address and Ending IP address. Complete the following steps on the Add Address Range dialog to set the address range:
-
Select + Add Address Range to add a new address range.
Tip
Select the ellipses... on the far right under Actions to update or remove the subnet range.
-
Select OK when done.
Note
If the subnet range entered overlaps a range from another Location, an error occurs when selecting Save, and the Location cannot be saved.
-
-
Topology Settings: Allows you to place the new Location in the hierarchy. Select Browse on the Parent Location line to select the Parent location.
-
Location Devices: Displays the clients associated with that location when editing an existing Location.
-
-
Mouse over or select the checkbox next to a Location, and then select Edit Location in the context menu. You can also select the ellipsis… in the Actions column (to the far right) to view the context menu.
Note
The Location ID (generated upon creation) is the object ID in the database and cannot be changed. The Location name can be changed.
-
Change the Parent Location to move the location within the hierarchy using the following steps:
Select Delete Location from the Action menu to delete a selected Location. When you delete a location, the system also removes the defined IP range or ranges associated with that Location. Any clients reporting from that Location become No Location clients if auto-location creation is disabled. If auto-location creation is enabled, the system automatically creates a new location the next time the client checks in.
Important
ALL child locations of this Location will ALSO be deleted.
Select Merge Locations from the Action context menu to merge IP address ranges from one location into another. Then, choose the target location. The system retains the location type (Default, VPN, or WiFi) of the target location.
-
Navigate to Assets > Devices to view all Adaptiva Clients reporting into the Adaptiva Server.
-

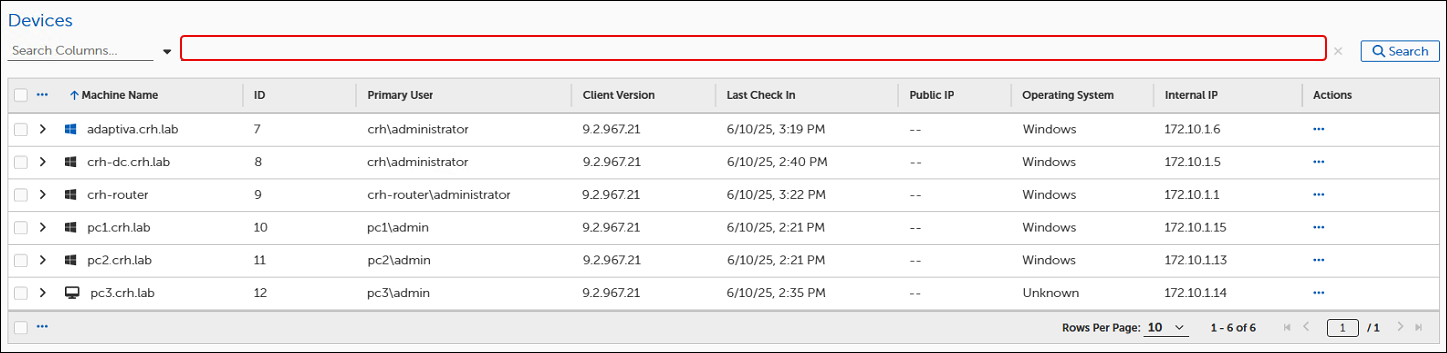

Enter a search term on the Search line to search the Machine Name column.
-
Select the column header to sort the list (columns Last Logged In and Public IP cannot be sorted).
-
Select the > next to the device name to view additional information about a specific Device. This expands the line to display the Client ID and Version.
-

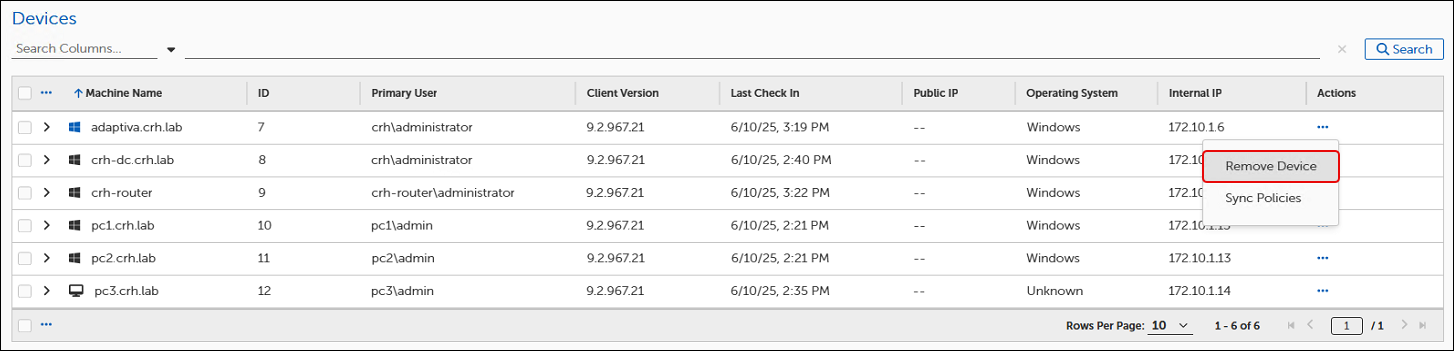

Select the ellipses… under the Actions column and Remove Device to remove the device from the Adaptiva database when an Adaptiva Client is no longer valid.
Tip
Use this feature when a machine is re-imaged, the name is changed, or the record of the expired client is still listed.
Note
The system purges inactive client records after 21 days. However, the old record remains licensed until the purge occurs.
